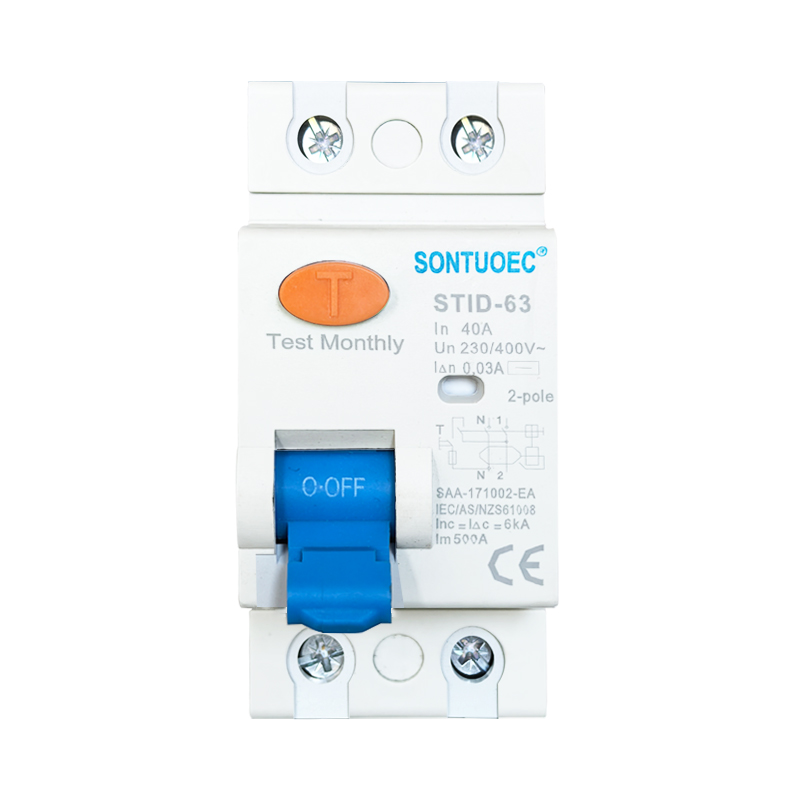

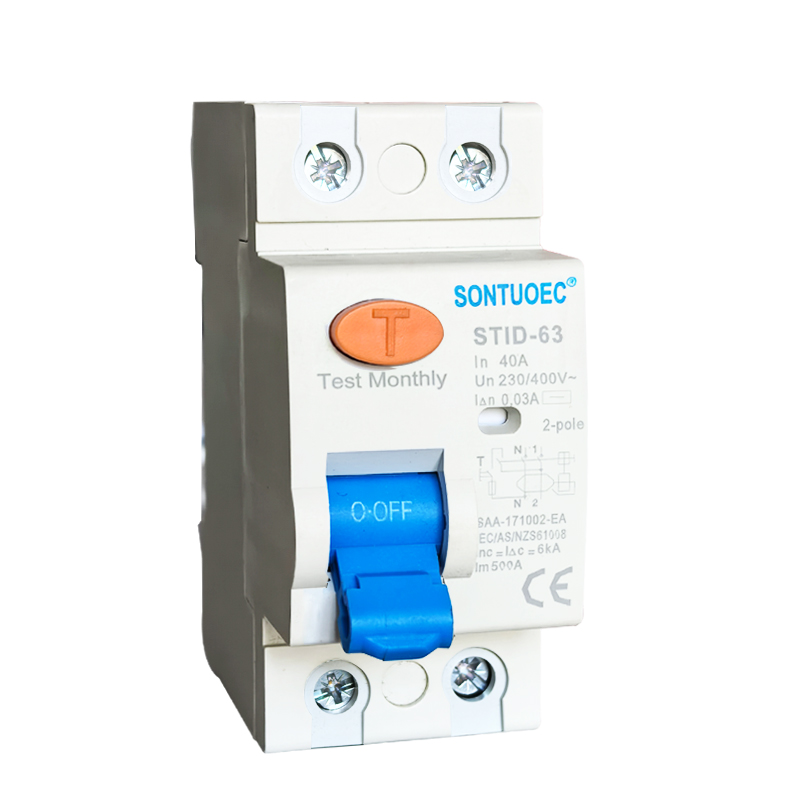

STID-63 Serio RCCB 230V 63A Residual Curlical Circuit Breaker
  • STID-63 Serio RCCB 230V 63A Residual Curlical Circuit BreakerSTID-63 Serio RCCB 230V 63A Residual Curlical Circuit Breaker
  • STID-63 Serio RCCB 230V 63A Residual Curlical Circuit BreakerSTID-63 Serio RCCB 230V 63A Residual Curlical Circuit Breaker
  • STID-63 Serio RCCB 230V 63A Residual Curlical Circuit BreakerSTID-63 Serio RCCB 230V 63A Residual Curlical Circuit Breaker
  • STID-63 Serio RCCB 230V 63A Residual Curlical Circuit BreakerSTID-63 Serio RCCB 230V 63A Residual Curlical Circuit Breaker

STID-63 Serio RCCB 230V 63A Residual Curlical Circuit Breaker

Sontuoec estas unu el la ĉinaj provizantoj/fabrikantoj specialiĝantaj pri produktado de diversaj malgrandaj elektraj aparatoj STID-63-serio RCCB 230V 63A Residual Current Circuit Breaker konformas al la normoj de IEC61008.

Modelo:STID-63

Sendu Demandon

Priskribo de la produkto

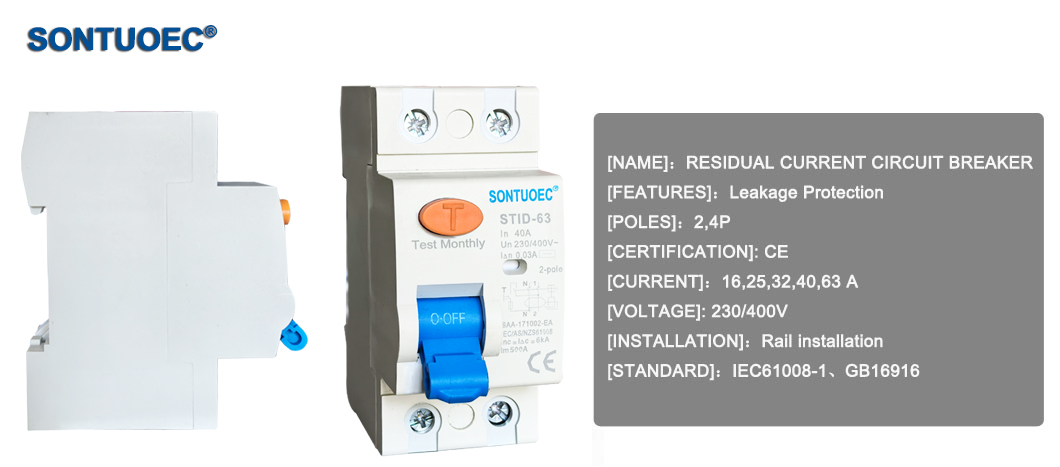

STID-63 Series RCCB 230V 63A Residual Current Circuit Breaker can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.



 Specifications:

Model Electronic type / magnetic type
Residual Current characteristics A, AC

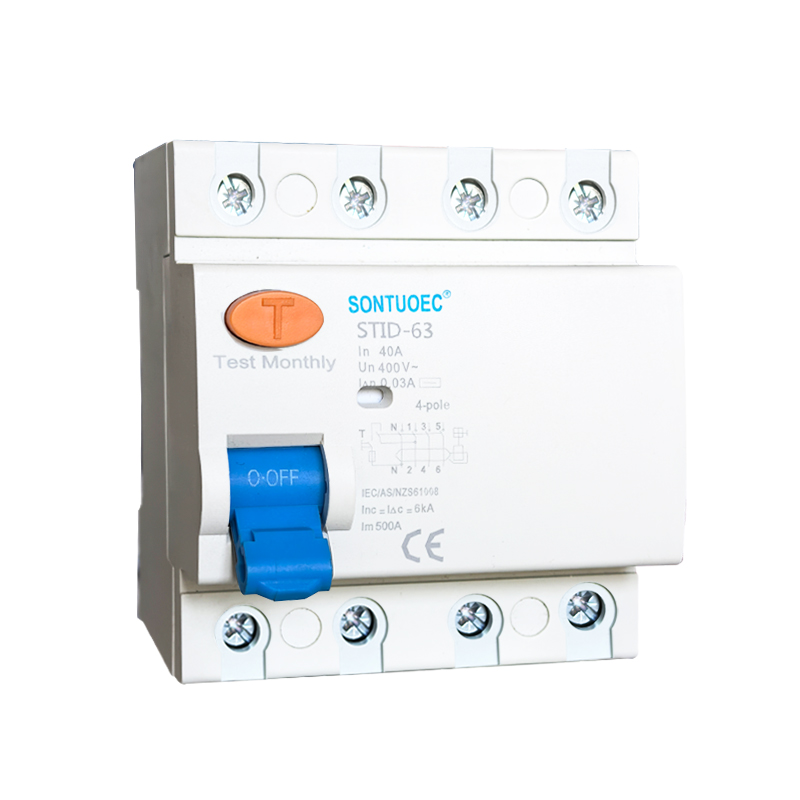

Pole NO 2P/4P
Rated Current (A) 16A,20A,25A,32A,40A,63A
Rated Voltage (V) 240/ 415V
Rated Residual operating current 30 ma , 100ma ,300ma ,500ma
Rated conditional resdual short circuit current 6KA
Electro-machanical endurance over 4000 cycles




Product Over View:

1.Provide protection against earth fault/leakage current and function of isolation

2.High short-circuit current withstand capacity

3.Applicable to terminal and pin/fork type busbar connection

4. Equipped with finger protected connection terminals

5.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity

6.Independent of power supply and line voltage, and free from external interference, voltage fluctuation.




FAQ

Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

Q 2. how's the delivery time ?

A. usually it will take about 25 days for production

Q 3. tell me the standard of package?

A. Normally are cartons, but also we can pack it according to your requirement.

Q 4.Would you accept to use our logo ?

A.If you have good quantity,it absolute no problem to do OEM.

Q5. Can i take some samples?

A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.

Q6. Are you original Factory?

A: Yes, we have our own factory .

Q7. How can you make sure the quality of the products?

A: We will accord to international quality standards to inspect every item before leaving our factory

Q8. How many years experience ?

A.: Our teams have more than 20years' experience.

Q9: Warranty time ?

A: 18months.

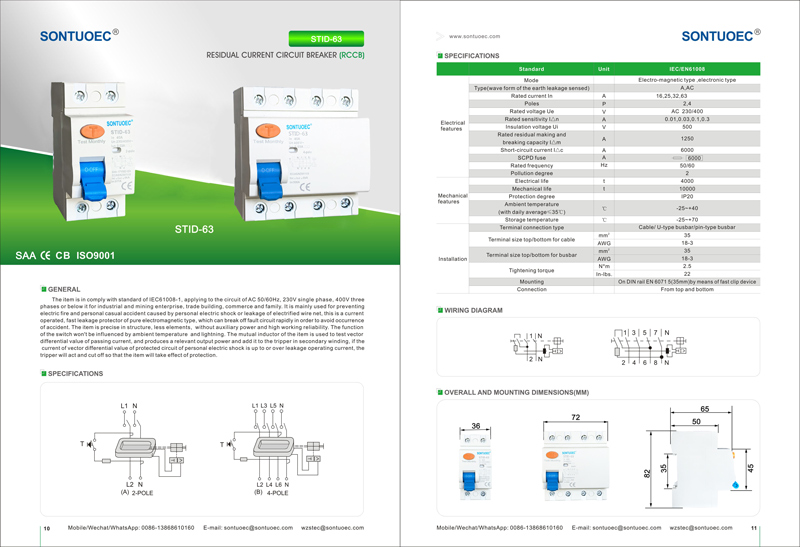

Sandard IEC/EN61008
Electrical Type(wave form of the earth leakage sensed) Electro-magnetic type, electronic type
features Rated current In A A,AC
Poles P 2,4
Rated voltage Us V AC 240/415
Rated sensitivity I△n A 0.01,0.03,0.1,0.3,0.5
Insulation voltage Ui V 500
Rated residual making and A 630
breaking capacity I△m
Short-circuit current I△c A 6000
SCPD fuse A 6000
Rated frequency Hz 50/60
Pollution degree 2
Mechanical Electrical life t 4000
features Mechanical life t 10000
Protection degree IP20
Ambient temperature ºC -25~+40
(with daily average ≤35ºC)
Storage temperature ºC -25~+70
Installation Terminal connection type Cable/U-type busbar/pin-type busbar
Terminal size top/bottom for cable mm2 25
AWG 3.18
Terminal size top/bottom for busbar mm2 25
AWG 3.18
Tightening torque N*m 2.5
In-lbs 22

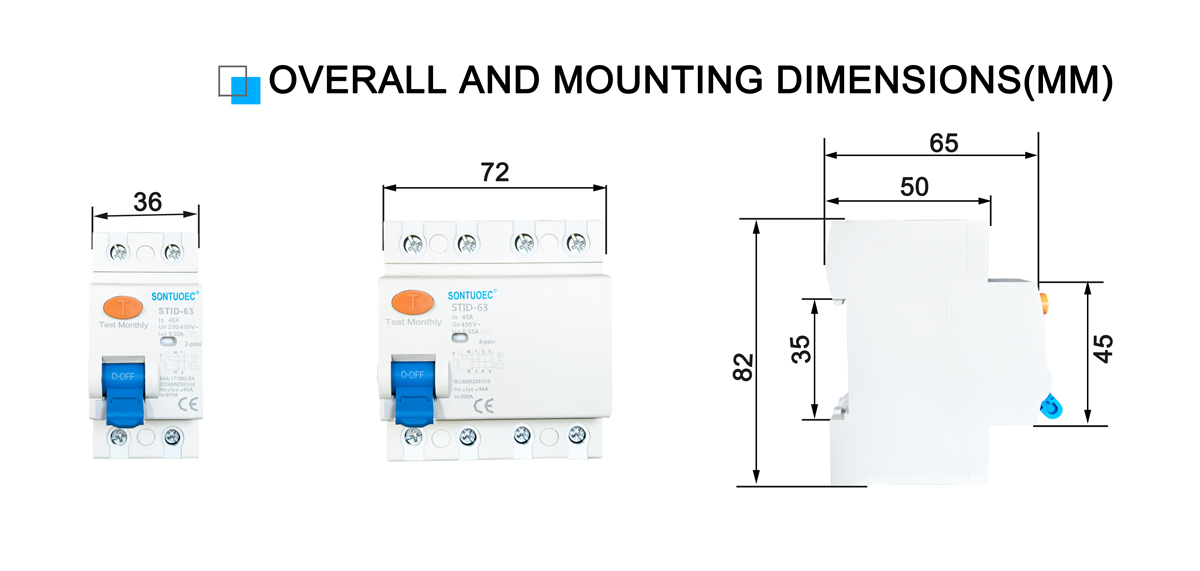

Mounting On DIN rail EN 60715(35mm)by means of fast clip device
Connection From top and bottom
Sandard IEC/EN61008
Electrical Type(wave form of the earth leakage sensed) Electro-magnetic type, electronic type
features Rated current In A A,AC
Poles P 2,4
Rated voltage Us V AC 240/415
Rated sensitivity I△n A 0.01,0.03,0.1,0.3,0.5
Insulation voltage Ui V 500
Rated residual making and A 630
breaking capacity I△m
Short-circuit current I△c A 6000
SCPD fuse A 6000
Rated frequency Hz 50/60
Pollution degree 2
Mechanical Electrical life t 4000
features Mechanical life t 10000
Protection degree IP20
Ambient temperature ºC -25~+40
(with daily average ≤35ºC)
Storage temperature ºC -25~+70
Installation Terminal connection type Cable/U-type busbar/pin-type busbar
Terminal size top/bottom for cable mm2 25
AWG 3.18
Terminal size top/bottom for busbar mm2 25
AWG 3.18
Tightening torque N*m 2.5
In-lbs 22
Mounting On DIN rail EN 60715(35mm)by means of fast clip device
Connection From top and bottom
